Part #: EP340
Headshield Eclipse 2 Midnight Black Ops Enjoy the ultimate in clarity and crystal-clear vision with the Eclipse 2.0.Super Bright Vision:Shade 2.0 at light…
£125.00 ex VAT
Optical Class 1/1/1/2
Viewing Area 96.00 x 46.50mm
ADF Size 110 x 90 x 9mm
Lens Shade DIN 4-8/9-13 Variable
Light State DIN 2.0
Shade Control Internal
Sensors 4
Grind Mode Yes (internal)
On/Off Automatic sleep mode
Power Supply Solar cell. Replaceable battery (1xCR2450 lithium)
Switching Time 1/25,000 s
Sensitivity Control Yes - Internal LCD
Delay Time (dark to light) 0.05 - 1.0s LED and Button Control
Low Amp TIG Rated >=2amps/DC; >=2amps/AC
Application Range Stick Welding, TIG AC DC Pulse
Excellent low amperage TIG response; MIG/MAG, Pulse
Plasma Cutting/ Welding; Grinding;
Not for Laser Welding or Oxyacetylene Welding/Cutting

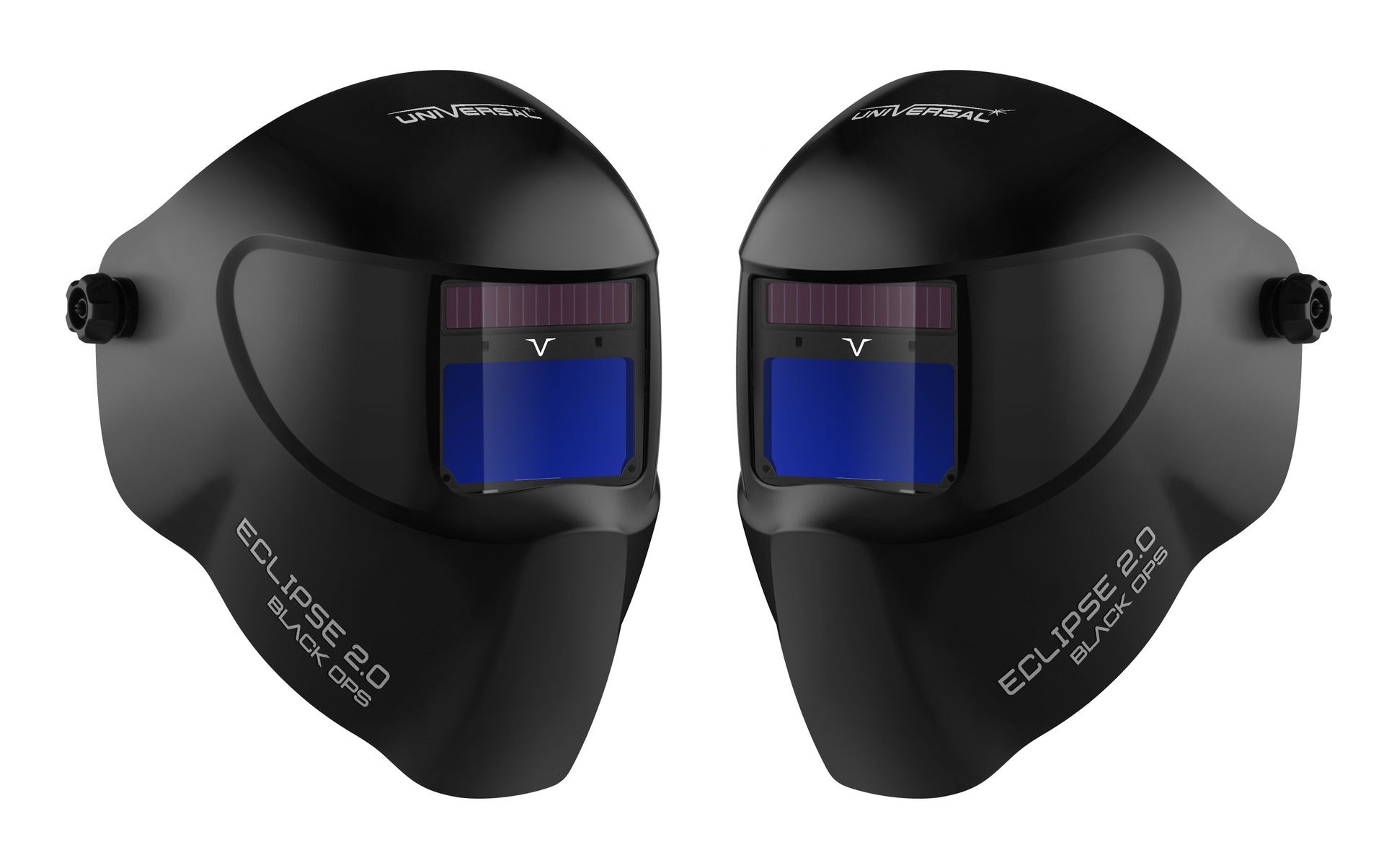

Headshield Eclipse 2 Midnight Black Ops
Enjoy the ultimate in clarity and crystal-clear vision with the Eclipse 2.0.
Super Bright Vision:
Shade 2.0 at light state, light transmittance up to 30%. Provides welders with superior clarity and visual acuity.
Extended Shade Range:
2.0 (grinding) / 4-8 (cutting) / 8-12 (welding). Allows for wide range of applications.
Tack Mode:
Aims for a smoother transition between light and dark states when tack welding.
Dark Mode:
Designed for tackling complex environments where surrounding factors limit the arc sensors rom functioning properly.
